| Model |

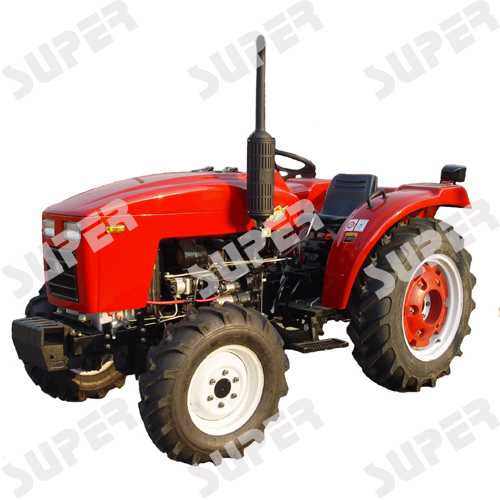

404A Tractor |
| EngineModel |
TY3102 |
| Engine |
Triplex, vertical, water-cooled, four-stroke diesel engine |
| Bore x itinerary mm |
102X105 |
| RATED POWER[KW(HP)] |
29.40 |
| RATED SPEED(RPM) |
2300 |
| Calibration conditions fuel consumption rate g/kW·h |
≤243 |
| Types |
Front ：7.5-16 Rear ：11.2-28 |
| Front-wheel tread mm |
1200/1300(可选) |
| Rear-wheel tread mm |
1150-1450 |
| Wheelbase mm |
1833.5 |
| RATED TRACTION FORCE(N) |
8810 |
| PTO SPEED(rpm) |
540/720 |
| Speed km/h |
1.9-28.34 |
| Gearbox few stalls |
（3+1）×2 Or （4+1）×2 |
| GROUND CLEARANCE mm |
292 |
| OVERALL Dimensions mm |
3230×1440×1985 |
| MIN.USE WEIGHT kg |
1780 |
|
