| Model |

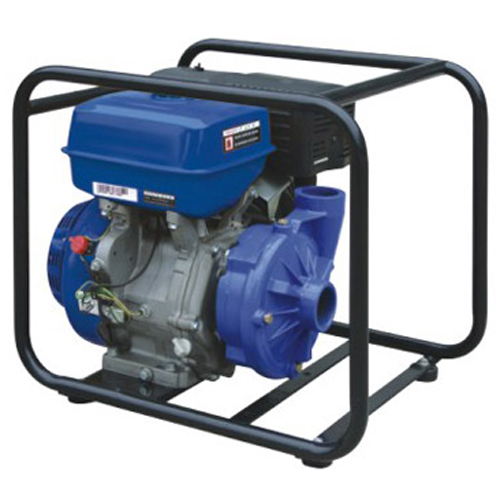

HP-60T(HIGH PRESSURE)
CAST IRON PUMP |
| Discharge port diameter (mm/inch) |
50 (2) |
| Suction port diameter(mm/inch) |
50 (2) |
| Discharge capacity [m3/h] |
25 |
| Max head lift [m] |
70 |
| Max suction head [m] |
8 |
| Rotation speed [rpm] |
3600 |
| Overall dimension (LxWxH) [mm] |
505x460x520 |
| Dry weight [kg] |
34 |
| Engine model |
SU270 Air-cooled single-cylinder 4-stroke |
| Power [Hp] |
9 |
| Rated rotation speed [rpm] |
3600 |
| Fuel tank capacity [L] |
5.5 |
| Fuel consumption [g/KW.h] |
280 |
|
